W12
Power Relay
Feature Description
●40A switching capability
●We can provide the contact gap is 1.5mm
●Breakdown voltage(between contact and coil):4KV
●Provide the product meet the standards of IEC60335-1
●UL insulation system:Class F
●Environmental friendly product(RoHS compliant)

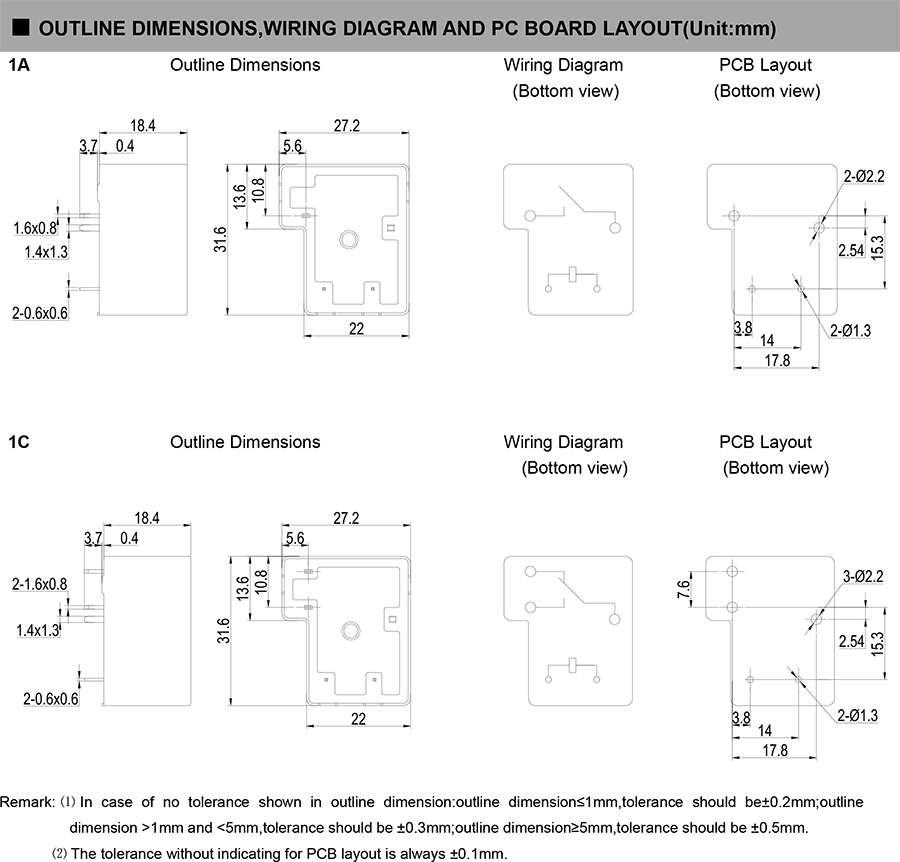

●Outline Dimensions:(31.6×27.2×18.4)mm
●Main application:Industrial Control?Photovoltaic Inverter
Product Description
Download PDF Product Description
